Aligning CosMx® Same-Cell Multiomics Data

Stand-alone tool for aligning protein and RNA data
multiomics
algorithms
protein
RNA
alignment
Authors
Affiliations

Mithra Korukonda

Bruker Spatial Biology

Github: skorukonda

Claire Williams

Bruker Spatial Biology

Github: crwilliams11

Published

October 2, 2025

Modified

October 2, 2025

1 CosMx Multiomics Data

CosMx® SMI allows users to acquire protein and RNA data from the same tissue as consecutive experiments. These data are acquired as independent runs and therefore need to be aligned, post-acquisition, to combine them into a multiomic study. This alignment process brings the decoded RNA transcripts into the coordinate system of protein data. To accomplish this, we have developed a standalone alignment tool that can be used to align CosMx data exported from AtoMx® SIP. The tool has a 2-step workflow represented in Figure 1:

Step 1: Align the RNA morphology fields of view (FOVs) to protein references.

Step 2: Assign the RNA transcripts to the protein cell segmentation labels.

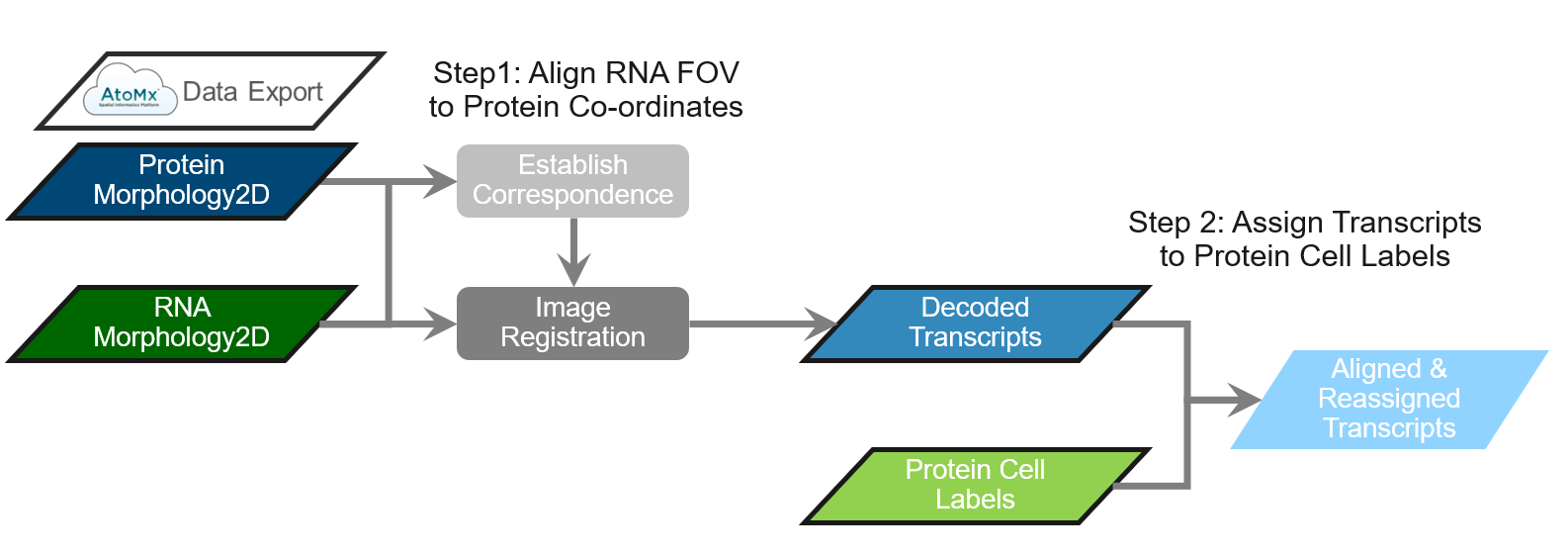

Figure 1: Multiomics alignment workflow

Like other items in our CosMx Analysis Scratch Space, the multiomics alignment tool presented here is experimental so the usual caveats and license applies.

2 Export CosMx Multiomics Data from AtoMx SIP

To export data from AtoMx SIP, you will need an sFTP application such as WinSCP. Launch the AtoMx Export function to obtain the AtoMx Hostname and Username (Figure 2, left). Use those credentials, with the AtoMx SIP user’s password, to open a WinSCP portal (Figure 2, right).

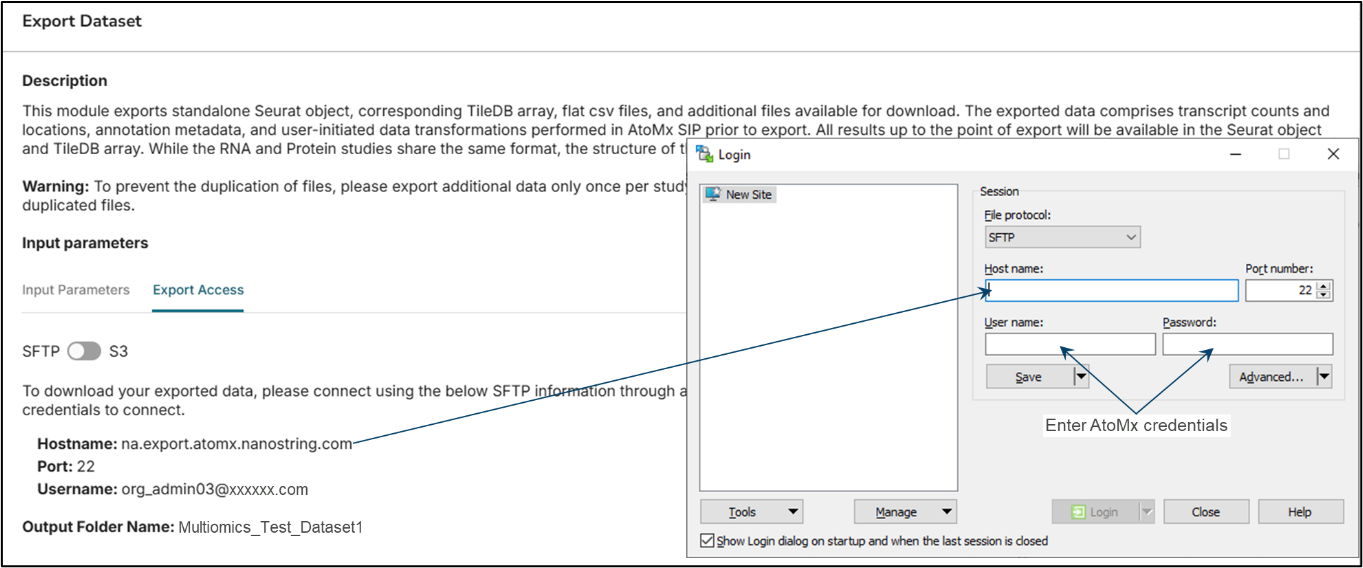

Figure 2: Establishing export access between AtoMx SIP and WinSCP

Next, export data from the protein experiment according to Figure 3 (a). Export data from the RNA experiment according to Figure 3 (b).

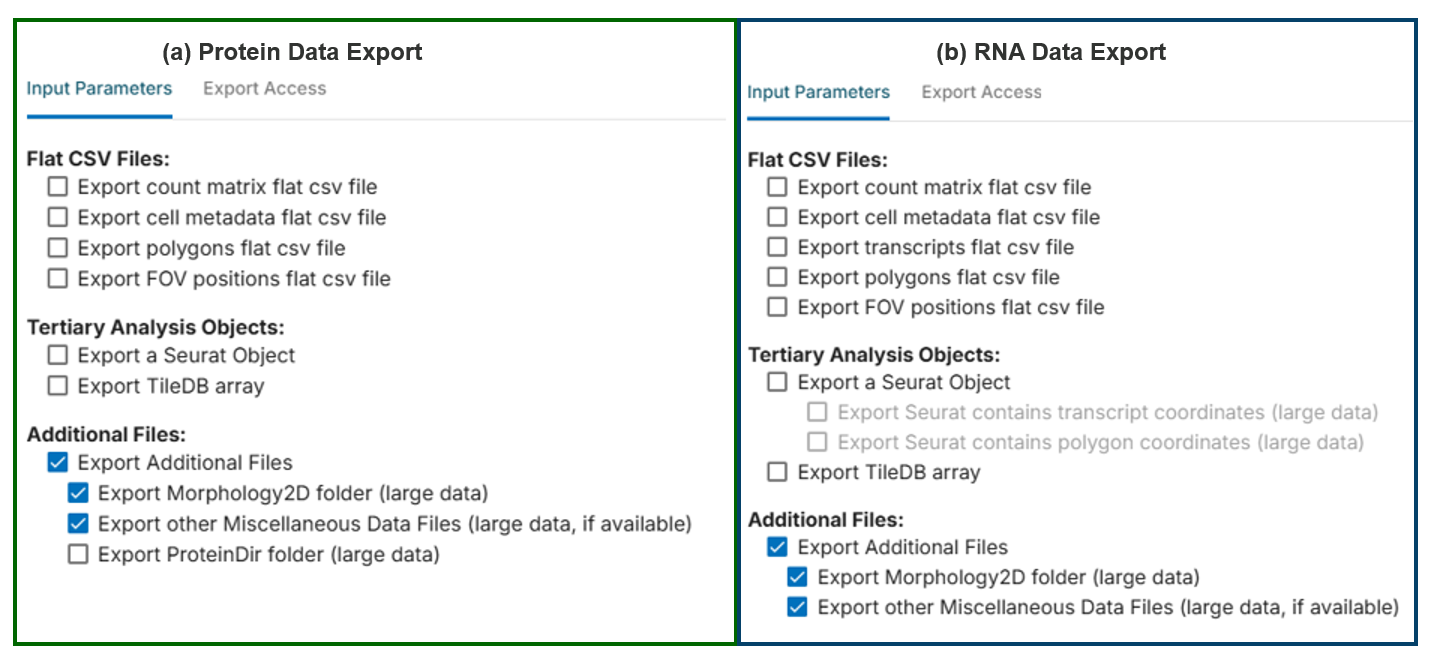

Figure 3: Data selection for (a) Protein and (b) RNA export from AtoMx SIP

Check the exported data to confirm the following contents:

  • Protein CellStatsDir folder and Morphology2D folder within

  • RNA CellStatsDir folder and Morphology2D folder within

  • RNA AnalysisResults folder

3 Download and Use Alignment Tool

Download and unzip the MultiO_Alignment_Tool_OCT2025.zip file available here. Once the file has been unzipped, launch the tool by double-clicking the MultiOAligmentUI.bat file. The executable will launch an interactive graphical user interface (GUI) as shown in Figure 4.

Note

This multiomics alignment tool is actively and continuously under development in the RnD groups at Bruker Spatial Biology. Please be aware that there may be bugs and that it has not gone through the regular level of quality and testing. Our goal here is to bring the capabilities of multiomics to CosMx SMI users as fast as possible. For technical support, please contact support.spatial@bruker.com.

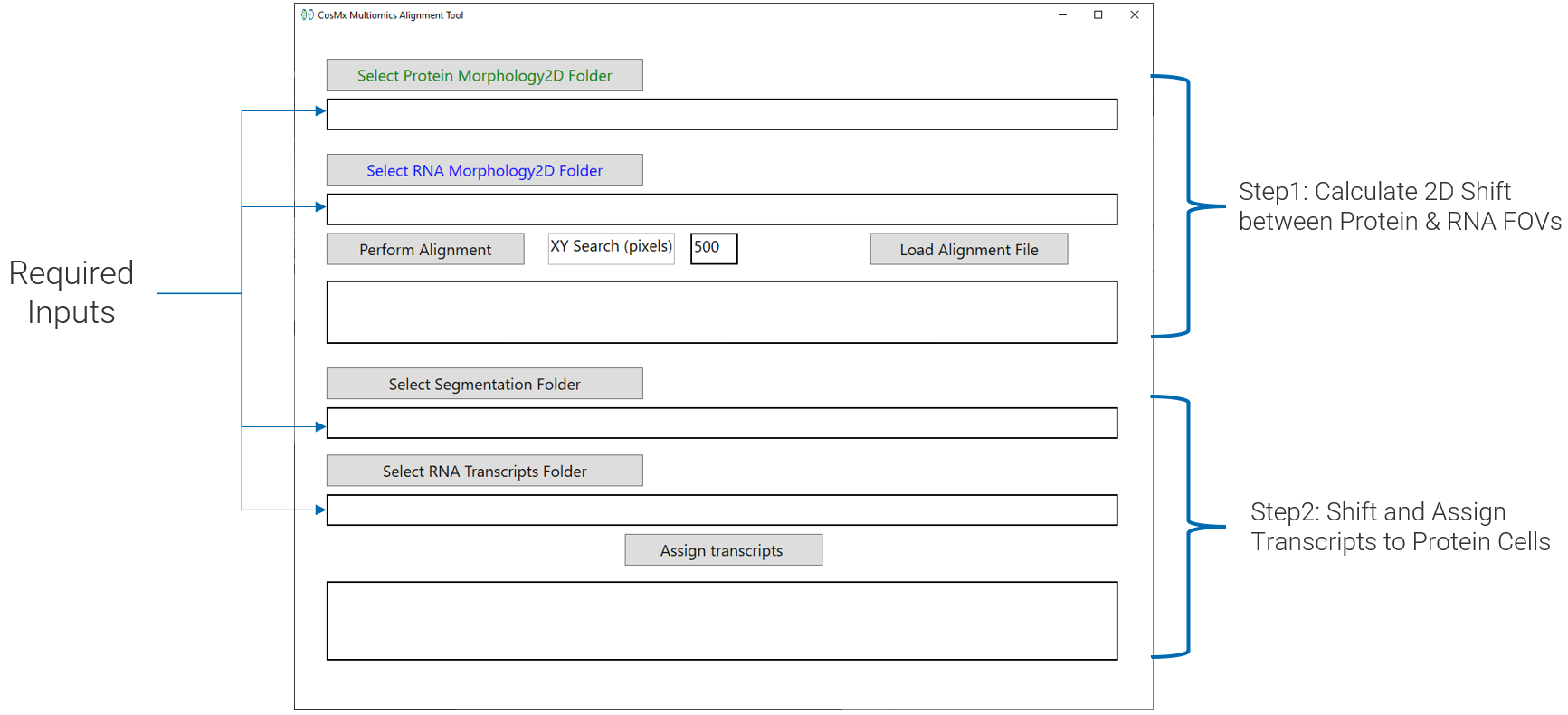

Figure 4: Standalone multiomics alignment tool GUI

3.1 Step 1: Calculate 2D Shift

To launch image alignment, select the Morphology2D folders for both the protein and RNA runs and click Perform Alignment. The standard search area used for the alignment is by default 500 pixels or roughly 60 microns. This range is large enough to account for shifts introduced by slide replacement. This search area is editable and can be increased to 750 if the user suspects a larger shift (though adjustment is typically not needed – the software makes an assessment of search range need prior to alignment).

During alignment a new folder called AlignmentQC is created within the RNA data folder structure and is populated with the outputs from the alignment. Occasionally, certain FOVs may be discarded from the multiomic analysis if they fail alignment. This can happen in cases of tissue peeling or significant cell loss. These FOVs, identified as outliers, are recorded in the Alignment_Stats_Curated.csv file and are excluded from the transcript re-assignment process. Refer to Table 1 for a list of AlignmentQC folder outputs and descriptions of the individual files.

Table 1: Folder outputs and descriptions
AlignmentQC Folder Outputs Description of individual files
Alignment_Stats.csv List of the paired Protein and RNA FOVs along with the computed XY shift (in pixels) between them.
FOV_mask.TIF Binary Map of the FOV Locations.
FOV_Cluster.TIF Visualization of FOV Clusters.
Displacement_Vectors.png Visualization of the FOV displacement with marker outliers.
Alignment_Stats_Curated.csv Updated Stats file with associated cluster label and outlier flag.
Stats_Report.txt Reports the percentage of FOVs that were successfully aligned, along with a list of FOVs that failed alignment and were excluded from target re-assignment.

3.2 Step 2: Shift and Assign Transcripts

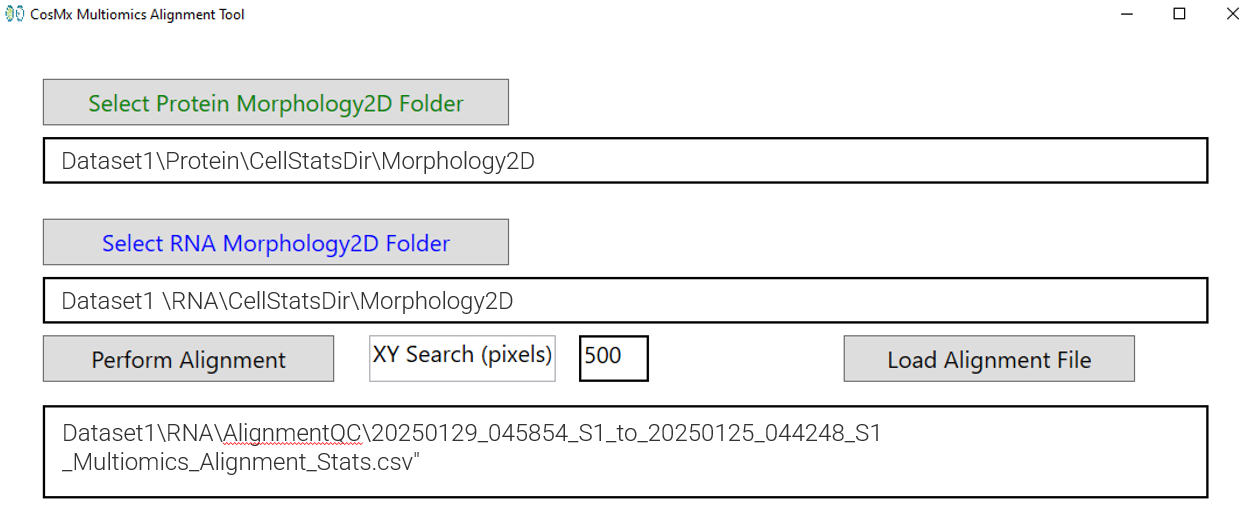

Once the alignment process has been completed for all the FOVs, the path of the final alignment will appear in the GUI Alignment box (Figure 5 ). The user can review the computed alignment to verify accuracy of the results.

Figure 5: Alignment tool generates XY registration between the protein and RNA images

Once the image registration is complete, the next step is to apply the computed shifts to transcripts and re-assign them to protein segmentation labels. For this step, select the Protein CellStatsDir and the location of the RNA transcripts folder (Figure 6 ). If the original folder structure of export is maintained, these folders will be automatically populated when the RNA and protein morphology folders are selected. Once the inputs have been chosen, click Assign transcripts as shown in Figure 6 (a).

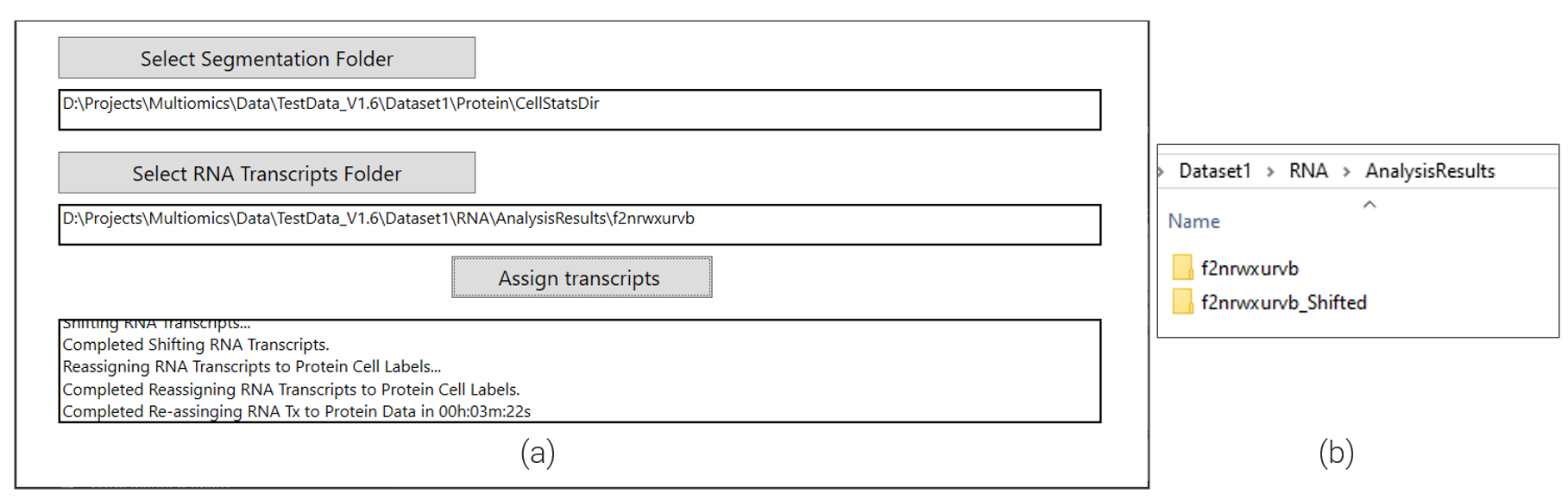

Figure 6: (a) Alignment tool shifts and re-assigns RNA transcripts to protein segmentation labels. (b) Final output fo the alignment.

For every FOV, the assignment process takes as input the calculated shift and applies it to the transcript locations and then updates the cell id based on the associated protein cell label data. Once the re-assignment is complete, the final output is a folder with the updated transcripts data as shown in Figure 6 (b).

4 Conclusions

After using the off-AtoMx alignment tool to apply protein cell segmentation boundaries and cell ID labels to the RNA data, you can use transcript-to-cell alignments found in the *_FOV#####__complete_code_cell_target_call_coords.csv per FOV files within the AnalysisResults_shifted folder to continue analysis with the aligned RNA dataset. These updated files can be used alongside the protein run flat files to create a new multiomic data object. It’s important to note that all transcripts in the aligned RNA data will now reference the segmentation results and metadata from the protein run.

If you prefer to integrate the aligned RNA data into an existing data object, you can do so by starting with the protein run object and either replacing the protein expression matrix with an aligned RNA matrix or appending the RNA data as an additional assay.

Important

Once the protein and RNA data are exported from AtoMx and modified through alignment, the updated data cannot be re-imported into AtoMx. As of AtoMx v2.2 and earlier, the platform retains only the original, pre-aligned data.
