1 Introduction

The first HierAnnot post introduced a structured way to assign normal lineage or cell-type labels to clusters. That workflow starts from a tissue-appropriate marker hierarchy and asks a lineage-routing question:

Which node in our hierarchy of normal cell types best fits this cluster?

That question is essential, but it is not always enough. In tumor and disease datasets, a cluster may have a clear normal lineage identity and also show several biological programs at the same time. For example, a colon epithelial cluster can be tumor-like, stem-like, mesenchymal-shifted, cycling, and interferon-high. A fibroblast cluster can show fibrosis or wound-response programs. An immune cluster can be cytotoxic, exhausted, or IFN-high.

Those are multi-state annotation problems. They are related to cell identity, but they are not the same as lineage identity. A cluster does not need to choose between “tumor-like” and “cycling” or between “epithelial” and “IFN-high.” Multiple programs can be active together.

HierAnnot therefore separates two tasks:

Normal hierarchy track: Assign a conservative lineage or cell-type identity.
Tumor / auxiliary program track: Detect and report biological state programs that can coexist with the normal identity.

The tumor/auxiliary track was designed primarily for tumor-status annotation and tumor-like label integration (which integrates both lineage-based cell type annotation and descriptive tumor status annotation to final export label of a tumor-positive cluster, example shown in Table 6). The same machinery can also be used in flag_only mode for non-tumor auxiliary programs such as cell cycle, stress, inflammation, or fibrosis.

This post focuses on the tumor/auxiliary program track. I use malignant status annotation as the primary example, but the same design supports broader multi-state annotation. At the end of this workflow, HierAnnot would annotate clusters with labels that carry the auxiliary status description (Table 4) in addition to the lineage-based cell type labels (Table 3).

2 The mental model: identity first, programs second

The normal hierarchy track and tumor/auxiliary track solve different problems.

The normal hierarchy track is a tree-routing problem. As illustrated in earlier post, it aggregates evidences from multiple aspects (i.e. marker enrichment, sibling competition, marker support, and branch support) to decide how far to descend through a normal lineage hierarchy. The output is a normal identity label, with safeguards such as mixed_*, candidate_*, and unknown when the evidence is uncertain.

The tumor/auxiliary program track is a flat program-reporting problem. It scores marker programs in parallel, then reports them through a tiered interpretation layer which decides whether the cluster has sufficient evidences for tumor identity and what descriptive annotation should be assigned to an identified tumor-positive cluster.

The main intuition is:

Normal hierarchy = “What is this cluster?”
Tumor/auxiliary track = “What programs are active in this cluster?”

For tumor annotation, the program track uses three reporting roles:

Role	Purpose	Example programs	Can establish tumor-like identity?
`status`	Provides core evidence that a cluster is tumor-like	`core_transformation`, `stemlike_transformation`, `epithelial_tumor_stress`	Yes
`state`	Describes the tumor state when tumor-status evidence is present	`emt_mesenchymal_transition`	Not by itself
`modifier`	Adds auxiliary context	`cycling`, `stress_ifn`	No

This keeps the tumor call conservative. A strong cycling or stress_ifn program can be useful to report, but it should not by itself convert a cluster into a tumor-like label. A strong tumor-status program can establish tumor-like identity; a strong state program can help name that tumor-like label or support a borderline tumor-status call. For a concrete example of a built-in tumor program track used by HierAnnot, see the example tumor_colon marker program set in Listing 1.

Why this is not another hierarchy

It may be tempting to make tumor programs another hierarchy, but that would impose the wrong structure on the biology.

In a normal hierarchy, sibling nodes are often alternative identity choices. A cluster is more likely to be a T cell or a B cell, a fibroblast or an endothelial cell, a basal epithelial cell or a luminal epithelial cell. The routing logic is designed around that assumption.

Tumor and auxiliary programs can be co-active:

core transformation + EMT/mesenchymal transition + cycling
stem-like tumor state + IFN/stress response
fibrotic program + wound response

These combinations are often biologically meaningful rather than ambiguous. Therefore, the tumor/auxiliary track scores marker programs in parallel and reports strong positives through a tiered interpretation layer instead of routing through a tree.

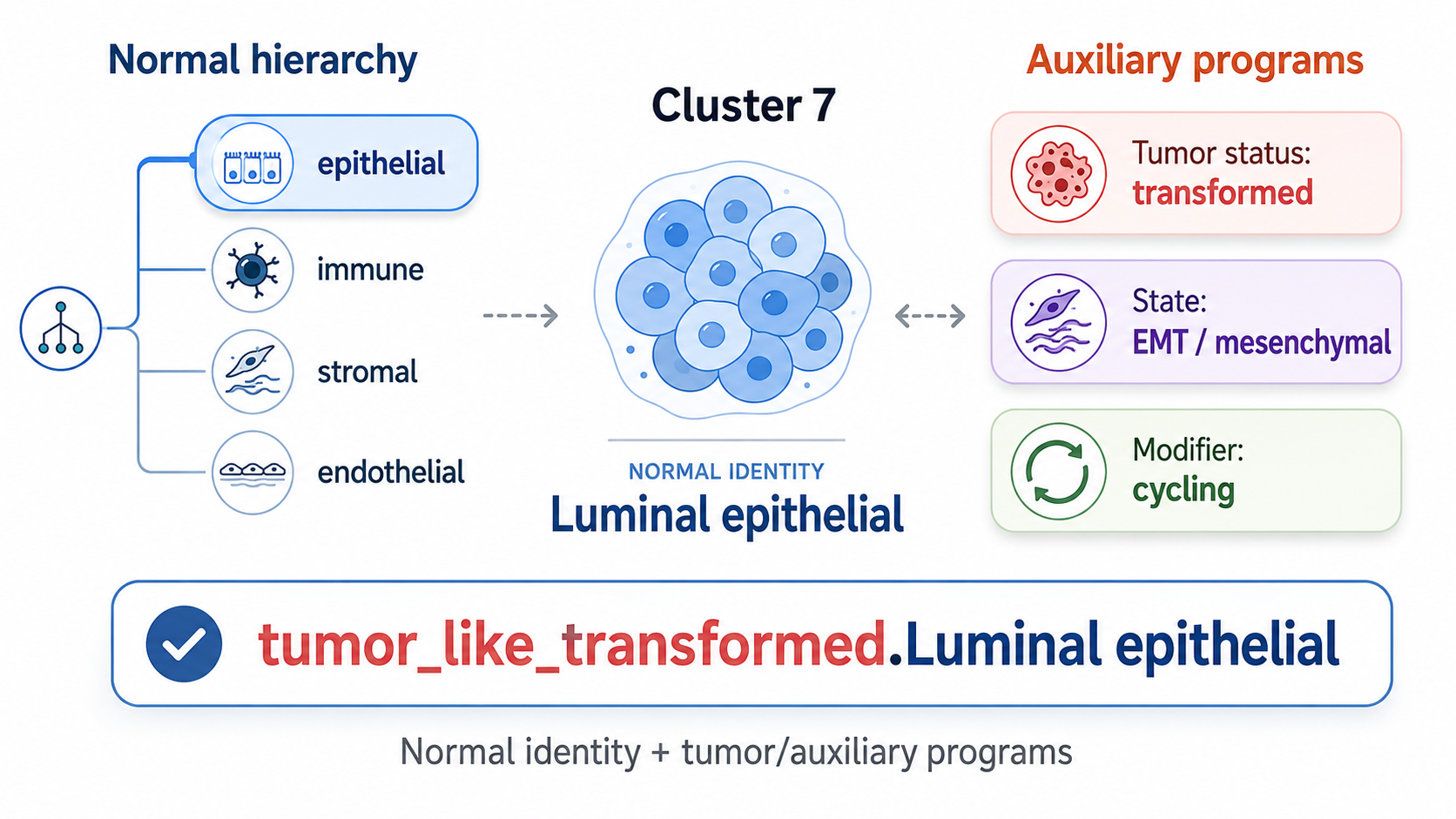

Two-track annotation design — Figure 1: Conceptual overview of HierAnnot’s two-track annotation design. The normal hierarchy track assigns a conservative cell identity label, while the auxiliary program track scores tumor- and state-related marker programs in parallel. The two outputs can then be reported separately or combined into an integrated label when tumor-status evidence is sufficiently strong.

3 Working principles at a glance

The flow below summarizes the two-track design and how the final export label is produced.

flowchart TD
    A["Cluster-level expression"] --> B["Normal hierarchy track"]
    A --> C["Tumor / auxiliary program track"]

    B --> B1["Route normal hierarchy"]
    B1 --> B2{"Normal export class"}
    B2 --> N1["resolved"]
    B2 --> N2["mixed_*"]
    B2 --> N3["candidate_*"]
    B2 --> N4["unknown"]

    C --> C1["Score flat marker programs"]
    C1 --> C2["Tiered reporting"]
    C2 --> C3["status labels<br/>core_transformation / stemlike / stress"]
    C2 --> C4["state labels<br/>emt_mesenchymal"]
    C2 --> C5["modifier labels<br/>cycling / stress_ifn"]

    C3 --> D{"Combined tumor-status<br/>score passes?"}
    C4 --> D
    C5 --> E1["Report modifiers separately"]

    D -- "No" --> E2["Keep normal export label<br/>report program status separately"]
    D -- "Yes" --> F{"Integration mode"}

    F -- "flag_only" --> E2
    F -- "integrate" --> G{"Normal export class"}

    G -- "resolved" --> H["tumor_like_status_state.normal_label"]
    G -- "mixed_*" --> I["keep mixed_* primary<br/>store tumor-like diagnostic"]
    G -- "candidate_*" --> J["keep candidate_* primary<br/>store tumor-like diagnostic"]
    G -- "unknown" --> K["tumor_like_status_state.unknown<br/>if reportable"]

    E1 --> Z["Result tables and diagnostics"]
    E2 --> Z
    H --> Z
    I --> Z
    J --> Z
    K --> Z

The most important rule is that tumor-like integration is driven by combined tumor-status evidence. State programs can support or decorate tumor-status calls, but modifier programs remain diagnostic by default.

Note 1: Under the hood: combined malignant-status scoring

The detailed cluster-level tumor/auxiliary decisions are stored in result.malignant_annotations, with one row per cluster. Program-level scores are stored in result.malignant_scores, with one row per cluster-program pair. The formulas below summarize how program-level evidence is converted into cluster-level tumor-status columns.

Similar to the scoring of normal hierarchy, HierAnnot computes a control-matched raw enrichment score for each cluster \(c\) and marker program \(p\) in auxiliary track using LogNormalized expression \(x\):

\[ R_{c,p}=\overline{x}_{\text{positive markers}(p)}-\overline{x}_{\text{matched controls}(p)}-w_{\text{neg}}\overline{x}_{\text{negative markers}(p)} \]

The raw score is then weighted by marker-detection support:

\[ A_{c,p} = R_{c,p} \cdot s_{c,p} \] where \(s_{c,p}\) increases when more positive markers from program \(p\) are detected in cluster \(c\). In the result tables, \(R_{c,p}\) is reported as raw_score, and \(A_{c,p}\) is reported as status_score.

Programs are interpreted by role:

status programs   -> establish tumor-like identity
state programs    -> describe or support tumor state
modifier programs -> auxiliary context only

The main tumor-status evidence comes from status programs:

\[ S_{\mathrm{core},c} = \max_{p \in P_{\mathrm{status}}} A_{c,p} + \mathrm{bonus}_{\mathrm{extra\ status},c} \]

The first term captures the strongest tumor-status program. The bonus term is small and capped; it rewards additional strong status programs without requiring every tumor program to be active.

State programs contribute differently. They do not establish tumor-like identity by themselves. Instead, they can add a small support bonus only when core tumor-status evidence is already borderline:

\[ S_{\mathrm{state\ support},c}=\begin{cases} \mathrm{small\ capped\ bonus}, & \text{if core status evidence is borderline and strong state evidence is present} \\ 0, & \text{otherwise} \end{cases} \]

The final combined tumor-status score is:

\[ S_{\mathrm{combined},c} = S_{\mathrm{core},c} + S_{\mathrm{state\ support},c} \]

This is reported as:

annot_malignant_combined_status_score
annot_malignant_status_score

A cluster can pass the tumor-status gate in two ways.

Direct core-status pass:

\[ S_{\mathrm{core},c} \ge T_{\mathrm{status}} \quad\text{and}\quad R_{\mathrm{core},c} \ge T_{\mathrm{raw}} \]

where \(T_{\mathrm{status}}\) is malignant_status_score_threshold and \(T_{\mathrm{raw}}\) is malignant_raw_score_threshold.

State-supported pass:

\[ S_{\mathrm{core},c} \approx T_{\mathrm{status}} \quad\text{and}\quad S_{\mathrm{combined},c} \ge T_{\mathrm{status}} \quad\text{with strong state evidence} \]

In words, a strong state program can help a near-threshold tumor-status call pass, but it cannot convert a cluster with no core tumor-status evidence into tumor-like.

The final pass flag is reported as:

annot_malignant_tumor_status_pass

If this flag is true and the tumor program is reportable in the normal-lineage context, the cluster can receive an integrated tumor-like label when malignant_integration_mode="integrate".

4 Running pipeline with auxiliary track

Just the code

For a quick start with just the code, refer to the examples scripts under HierAnnot/examples subfolder of source code repository.

examples/basic_usage.py: normal hierarchy annotation along with optional malignant integration.
examples/end_to_end_anndata.py: end-to-end workflow with AnnData and custom embeddings.
examples/plot_diagnostics_from_bundle.py: all individual diagnostic plots
examples/tissue_type_detection.py: automatic pipeline with tissue type detection and auto-pick of normal hierarhcy and tumor program set.

4.1 Illustration dataset

To illustrate usage, this post uses a publicly available CosMx^® whole-transcriptomics single-slide dataset on human colon cancer FFPE tissue that you can download from the Bruker Spatial Biology webpage. Please refer to earlier post on how to generate AnnData object from either post-analyzed Seurat object or the flat files exported by AtoMx^® SIP.

For the code examples, assume we already have an AnnData object named adata. The object should contain expression data and a cluster assignment column:

import anndata as ad

# read in anndata object and get the `obs` column with clusters
adata = ad.read_h5ad("path/to/data.h5ad")
cluster_key = "cluster"

# Minimal assumed inputs:
# - adata.layers["counts"]   (raw integer counts, required)
# - adata.obs["cluster"]     (cluster labels)

HierAnnot scores cluster-level expression profiles. We can aggregate the AnnData object to cluster means:

from hierannot import (
    aggregate_anndata_to_cluster_means,
    HierAnnotPipeline,
    make_cluster_annotation_export_summary,
)

cluster_means = aggregate_anndata_to_cluster_means(
    adata,
    cluster_key=cluster_key,
    source="layer",
    source_key="counts",
    method="mean",
    uppercase_genes=True,
)

# pandas.DataFrame with gene names as row index for feature x cluster average expression profiles
cluster_means.head()

4.2 Setup hierarchy and auxiliary marker program set

HierAnnot provides several built-in marker-program sets for tumor-status annotation and auxiliary program scoring. These include broad solid-tumor programs, tissue-context tumor programs, and non-tumor auxiliary program sets for flag_only workflows. You can inspect the available sets and their recommended usage metadata with list_builtin_marker_program_sets():

from hierannot import list_builtin_marker_program_sets

program_sets = list_builtin_marker_program_sets()
print(program_sets)

Table 1: All built-in markger program sets returned by list_builtin_marker_program_sets().

name	program_family	tissue_scope	recommended_hierarchy	recommended_integration_mode	recommended_report_block_preset	description	n_programs	n_status_programs	n_state_programs	n_modifier_programs
tumor_general	tumor	pan-solid-tumor		integrate	tumor_reportable	Shared solid-tumor status, state, and modifier programs. Status programs establish tumor-like support; state/modifier programs add context.	6	3	1	2
tumor_breast	tumor	breast	breast_tme	integrate	tumor_reportable	Breast-focused tumor-state marker programs, plus tumor_general by default.	2	0	2	0
tumor_colon	tumor	colon	colon_tme	integrate	tumor_reportable	Colon-focused tumor-state marker programs, plus tumor_general by default.	2	0	2	0
tumor_skin	tumor	skin	skin_tme	integrate	tumor_reportable	Skin-focused tumor-state programs: reusable squamous states plus melanocytic state descriptors, with tumor_general added by default.	4	0	4	0
tumor_squamous	tumor	squamous	skin_tme or tonsil_tme	integrate	tumor_reportable	Reusable squamous tumor-state programs. These decorate solid-tumor calls after squamous lineage is established by the normal hierarchy.	3	0	3	0
tumor_tonsil	tumor	tonsil/oropharyngeal squamous	tonsil_tme	integrate	tumor_reportable	Tonsil/oropharynx squamous tumor-state programs, plus tumor_general by default.	3	0	3	0
fibrosis	fibrosis	stromal		flag_only	lineage_aware	Fibrosis and stromal remodeling auxiliary programs.	3	0	0	3
immune_lymphoid_states	immune_state	lymphoid/lymphoma-context	immune_core or tme_core	flag_only	lineage_aware	Lymphoid immune subtype/state programs for lymphoma-context flag-only annotation. These do not establish malignant status by themselves.	8	0	6	2
cell_cycle	cell_cycle	pan-tissue		flag_only	off	Cell-cycle/proliferation auxiliary programs for flag-only scoring.	3	0	0	3
inflammation	inflammation	pan-tissue		flag_only	off	Inflammatory and antigen-presentation auxiliary programs for flag-only scoring.	2	0	0	2
stress	stress	pan-tissue		flag_only	off	Stress, hypoxia, interferon, and UPR auxiliary programs for flag-only scoring.	3	0	0	3

Each built-in marker program set is designed for different annotation purpose and HierAnnot allows you to pick one marker program set at a time. For the colon cancer example dataset here, we will use a colon tissue microenvironment hierarchy colon_tme and a colon-specific tumor program set tumor_colon. Please refer to package README on how to customize the marker program set (i.e. a custom list of MalignantProgram objects) for auxiliary track annotation.

from hierannot import get_builtin_hierarchy, get_builtin_marker_program_set

# normal hierarchy
root_programs = get_builtin_hierarchy("colon_tme")

# tumor program set, use `tumor_general` for generic solid-tumor programs shared across tissue types
tumor_programs = get_builtin_marker_program_set("tumor_colon")

You can visualize the structure and content of those programs using helper functions:

Code

from hierannot import (
  format_hierarchy_tree, format_marker_program_set,
  summarize_marker_program_set
)

# visualize the chosen hierarchy as a tree
print(format_hierarchy_tree(root_programs))

# visualize the tumor program set
print(format_marker_program_set(tumor_programs, title="tumor_colon"))

# get summary info for tumor program set
program_summary = summarize_marker_program_set(tumor_programs)
print(program_summary[[
    "name",
    "reporting_role",
    "competition_group",
    "n_positive_markers",
    "description",
]])

Table 2: Program summary for built-in tumor_colon marker program set

name	reporting_role	competition_group	n_positive_markers	description
core_transformation	status	core_transformation	9	Core epithelial transformation status module. This avoids using broad epithelial lineage markers as the main tumor-status evidence.
stemlike_transformation	status	stemlike_transformation	10	Stem-like transformation status module used as additional tumor-status evidence in epithelial/parenchymal contexts.
epithelial_tumor_stress	status	tumor_epithelial_stress	10	Epithelial tumor/stress status module that supports tumor-like detection when core transformation markers are borderline.
goblet_mucinous_like	state	colon_subtype	5	Colon tumor goblet/mucinous-like state descriptor.
wnt_stem_like	state	colon_subtype	5	Colon tumor WNT/stem-like state descriptor.
emt_mesenchymal_transition	state	emt_mesenchymal	14	EMT/mesenchymal-transition tumor state module.
cycling	modifier	proliferation	6	Cycling/proliferative tumor-associated modifier. It is reported as context and does not establish tumor-like status by itself.
stress_ifn	modifier	stress_ifn	6	Interferon/stress-associated tumor modifier. It is reported as context and does not establish tumor-like status by itself.

Formatted text returned by format_marker_program_set() for built-in tumor_colon marker set.

Listing 1: Example built-in marker program set

tumor_colon: 8 programs

[status]
  competition_group: core_transformation
    - core_transformation (label=transformed; +9, -1)
      + markers: SOX9, KRT17, TACSTD2, CLDN4, MSLN, S100A14, LCN2, CEACAM5, ... (+1 more)
      report_on_lineages: Epithelial, ... (+40 more)
  competition_group: stemlike_transformation
    - stemlike_transformation (label=stemlike; +10, -1)
      + markers: PROM1, LGR5, ASCL2, OLFM4, SOX9, CD44, ALCAM, MSI1, ... (+2 more)
      report_on_lineages: Epithelial, ... (+40 more)
  competition_group: tumor_epithelial_stress
    - epithelial_tumor_stress (label=tumor_stress; +10, -1)
      + markers: KRT17, KRT6A, KRT6B, LCN2, S100A8, S100A9, SERPINB3, SERPINB4, ... (+2 more)
      report_on_lineages: Epithelial, ... (+40 more)

[state]
  competition_group: colon_subtype
    - goblet_mucinous_like (label=goblet_mucinous_like; +5, -1)
      + markers: MUC2, SPINK4, TFF3, AGR2, CLCA1
      report_on_lineages: Epithelial, ... (+40 more)
    - wnt_stem_like (label=wnt_stem_like; +5, -1)
      + markers: LGR5, ASCL2, SOX9, AXIN2, MYC
      report_on_lineages: Epithelial, ... (+40 more)
  competition_group: emt_mesenchymal
    - emt_mesenchymal_transition (label=emt_mesenchymal; +14, -1)
      + markers: VIM, FN1, ITGA5, ITGB1, ITGA6, ZEB1, ZEB2, SNAI1, ... (+6 more)
      report_on_lineages: Epithelial, ... (+40 more)

[modifier]
  competition_group: proliferation
    - cycling (label=cycling; +6, -0)
      + markers: MKI67, TOP2A, UBE2C, PCNA, TYMS, BIRC5
      report_on_lineages: Epithelial, ... (+40 more)
  competition_group: stress_ifn
    - stress_ifn (label=stress_ifn; +6, -0)
      + markers: STAT1, ISG15, IFIT1, IFIT3, MX1, OAS1
      report_on_lineages: Epithelial ... (+40 more)

Formatted tree returned by format_hierarchy_tree() for built-in colon_tme hierarchy.

Listing 2: Example built-in hierarchy

- Intestinal epithelial (+6, -4, children=3)
  - Absorptive-like (+5, -1, children=0)
  - Goblet-like (+5, -1, children=0)
  - Stem/TA-like (+5, -1, children=0)
- Fibroblast (+5, -4, children=0)
- Endothelial (+5, -3, children=1)
  - Capillary endothelial (+5, -2, children=0)
- Mural (+5, -2, children=1)
  - Pericyte (+5, -6, children=0)
- Immune (+5, -2, children=6)
  - T cell (+5, -2, children=3)
    - CD4 T cell (+5, -2, children=0)
    - CD8 T cell (+5, -1, children=0)
    - Treg (+5, -2, children=0)
  - B cell (+5, -2, children=1)
    - Plasma cell (+5, -2, children=0)
  - NK cell (+5, -2, children=0)
  - Myeloid (+5, -2, children=3)
    - Macrophage (+5, -2, children=0)
    - Monocyte (+5, -2, children=0)
    - Dendritic cell (+5, -2, children=0)
  - Mast cell (+5, -2, children=0)
  - Neutrophil (+5, -2, children=0)

Within the built-in tumor_* program sets, core_transformation is the main generic tumor-status module, which captures compact expression evidence for a transformed, tumor-like epithelial state that can be evaluated across solid-tumor data sets. HierAnnot treats this as tumor-status evidence: if the program is sufficiently enriched and supported by detected markers, it can contribute to a tumor-like call. More specific programs, such as EMT, cycling, stress, or tissue-specific melanocytic programs, are then used as state or modifier evidence which do not establish tumor-like identity by themselves but add a small support bonus only when core tumor-status evidence is already borderline. See details on program roles and tumor-status scoring in Note 1 above.

4.3 Choose how auxiliary-track labels interact with final labels

HierAnnot provides different modes for controlling how auxiliary-track labels interact with the final exported annotation. These modes are not sequential optimization steps; they are alternative workflows for different analysis goals.

The main control is malignant_integration_mode:

Mode	Best for	Export label behavior
`off`	Standard normal hierarchy annotation without the auxiliary program track	Export labels are normal-hierarchy labels only; tumor/auxiliary programs are not scored
`flag_only`	Reviewing tumor/auxiliary program activity without changing normal labels; non-tumor auxiliary tracks	Normal hierarchy label remains primary; program calls are reported separately
`integrate`	Tumor-focused workflows where strong tumor-status evidence should appear in the final label	Strong, reportable tumor-status calls can produce `tumor_like_*` labels

A second control is program_report_block_preset, which controls where tumor-like labels are allowed to be reported after normal hierarchy routing. In this post, we use the recommended solid-tumor default:

program_report_block_preset="tumor_reportable"

This preset allows reporting in curated tumor-reportable built-in lineages while guarding against common false positives in immune, stromal, endothelial, and mural compartments. For custom hierarchies or specialized workflows, use an exact block list or "lineage_aware" program metadata. For the complete option reference for integration modes, report-block presets, lineage-aware metadata, and export behavior, refer to the package README.

The two sections below demonstrate the two most common workflows.

4.4 Workflow A: flag-only multi-state annotation

In flag_only mode, the normal hierarchy still produces the export label. The tumor/auxiliary program track is scored and reported separately in result.malignant_annotations.

This mode is useful when the program track is a secondary layer of interpretation:

Which clusters show tumor-status, state, or modifier evidence?

without changing the final cell-type labels.

pipeline_flag = HierAnnotPipeline(
    root_programs=root_programs,
    malignant_programs=tumor_programs,
    malignant_integration_mode="flag_only",
    program_report_block_preset="tumor_reportable",
)

result_flag = pipeline_flag.fit_score(cluster_means)

The normal hierarchy annotations are stored in result.cluster_annotations.

Code

hiera_cols = [
    "cluster_id",
    "annot_label",
    "annot_path",
    "annot_level",
    "annot_status",
    "annot_confidence",
    "annot_branch_supported_raw_score",
    "annot_final_call_margin"
]

result_flag.cluster_annotations[hiera_cols]

The tumor/auxiliary program summary is stored in result.malignant_annotations.

Code

malig_cols = [
    "cluster_id",
    "annot_malignant_status",
    "annot_malignant_label_concise",
    "annot_malignant_status_label",
    "annot_malignant_state_label",
    "annot_malignant_modifier_labels",
    "annot_malignant_tumor_status_pass",
    "annot_malignant_raw_score",
    "annot_malignant_status_score",
    "annot_malignant_status_decision_source",
]

result_flag.malignant_annotations[malig_cols]

## To inspect all strong programs for a given cluster in one field
result_flag.malignant_annotations[["cluster_id", "annot_malignant_strong_programs"]]

## To inspect tumor-like clusters only
result_flag.malignant_annotations.loc[
    result_flag.malignant_annotations["annot_malignant_tumor_status_pass"],
    malig_cols,
]

## To inspect clusters where state support helped a borderline tumor-status call pass
result_flag.malignant_annotations.loc[
    result_flag.malignant_annotations["annot_malignant_status_decision_source"]
    == "status_core_plus_state_support",
    malig_cols,
]

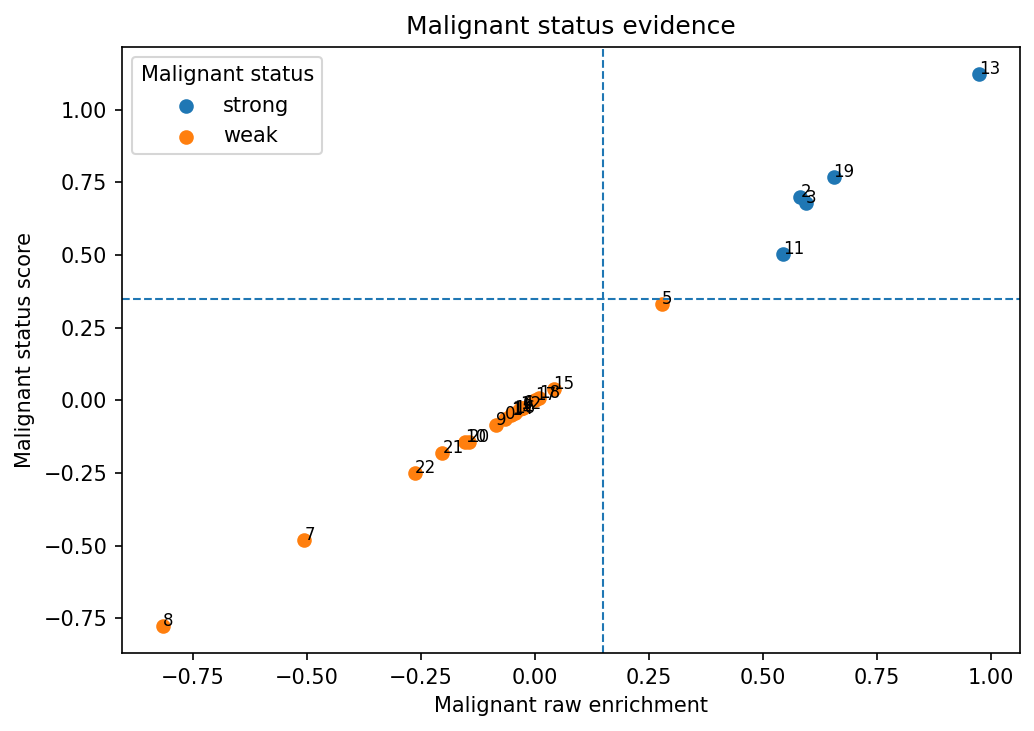

Although the current result table uses malignant_* column names, it is best to think of this table as the summary of the flat tumor/auxiliary program track.

Important columns include:

Column	Meaning
`annot_malignant_status`	Overall strong/weak/none status for the tumor/auxiliary track
`annot_malignant_tumor_status_pass`	Whether combined tumor-status evidence passed the tumor-like gate
`annot_malignant_status_label`	Primary status label, such as `transformed`
`annot_malignant_state_label`	Selected state label, such as `emt_mesenchymal`
`annot_malignant_modifier_labels`	Modifier labels, such as `cycling` or `stress_ifn`
`annot_malignant_label_concise`	Compact label used if tumor-like integration is enabled
`annot_malignant_status_score`	Combined tumor-status score
`annot_malignant_raw_score`	Core status raw evidence
`annot_malignant_status_decision_source`	Whether the call came from core status alone or core status plus state support

This table is intentionally richer than a single label. Multi-state annotation should preserve the distinction between status, state, and modifier programs.

In flag_only mode, tumor/auxiliary programs do not change the final export label.

export_flag = make_cluster_annotation_export_summary(result_flag)

Code

expr_cols = [
    "cluster_id",

    # final export label
    "annot_export_label",
    "annot_export_status",

    # normal hierarchy outcomes
    "annot_label",
    "annot_confidence",

    # malignant flagging outcomes
    "annot_malignant_status",
    "annot_malignant_label_concise",
    "annot_export_malignant_flag"
]

export_flag[expr_cols]

The export label remains normal-hierarchy based. The tumor/auxiliary status can be used as an additional metadata field.

Table 3: Example cluster_annotations results.

cluster_id	annot_label	annot_path	annot_level	annot_status	annot_confidence	annot_branch_supported_raw_score	annot_final_call_margin
15	Pericyte	Mural > Pericyte	2	assigned	high	0.9137479	0.4574219
0	Fibroblast	Fibroblast	1	assigned	medium	0.4967125	-0.0869893
4	Pericyte	Mural > Pericyte	2	assigned	high	1.0323811	0.8994070
7	Neutrophil	Immune > Neutrophil	2	assigned	high	0.1539260	-1.2210864
14	Fibroblast	Fibroblast	1	assigned	high	1.7800327	0.3375781
8	Treg	Immune > T cell > Treg	3	assigned	high	0.2733847	1.6741942
12	Capillary endothelial	Endothelial > Capillary endothelial	2	assigned	high	0.1394757	0.4791046
18	Pericyte	Mural > Pericyte	2	assigned	high	0.7907540	0.1775122
6	Pericyte	Mural > Pericyte	2	assigned	high	0.8920664	0.6298190
10	Unresolved	Unresolved	0	stopped_at_parent	none	NA	NA
2	Stem/TA-like	Intestinal epithelial > Stem/TA-like	2	assigned	high	0.4309357	2.3992049
19	Stem/TA-like	Intestinal epithelial > Stem/TA-like	2	assigned	high	0.4559314	1.2179506
3	Stem/TA-like	Intestinal epithelial > Stem/TA-like	2	assigned	high	0.3351936	0.9490338
16	Fibroblast	Fibroblast	1	assigned	high	2.1059796	1.5885825
22	Mast cell	Immune > Mast cell	2	assigned	high	2.6218248	10.0048250
13	Absorptive-like	Intestinal epithelial > Absorptive-like	2	assigned	high	0.1341072	1.2709330
1	Fibroblast	Fibroblast	1	assigned	high	2.4592083	1.9186232
17	Unresolved	Unresolved	0	stopped_at_parent	none	NA	NA
21	Plasma cell	Immune > B cell > Plasma cell	3	assigned	high	2.3151134	5.1291646
9	Fibroblast	Fibroblast	1	assigned	high	0.9003778	0.4141886
11	Absorptive-like	Intestinal epithelial > Absorptive-like	2	assigned	high	0.6812847	1.1710310
5	Goblet-like	Intestinal epithelial > Goblet-like	2	assigned	high	1.5152592	6.1732956
20	Neutrophil	Immune > Neutrophil	2	assigned	high	0.5986723	5.5202015

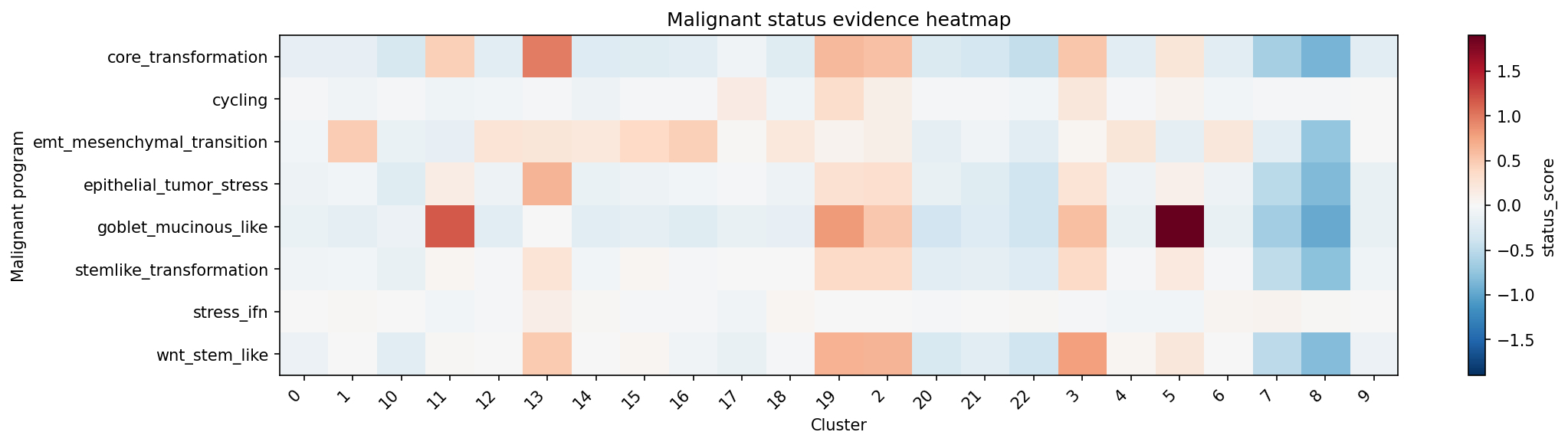

Table 4: Example malignant_annotations results.

cluster_id	annot_malignant_status	annot_malignant_label_concise	annot_malignant_status_label	annot_malignant_state_label	annot_malignant_modifier_labels	annot_malignant_tumor_status_pass	annot_malignant_raw_score	annot_malignant_status_score	annot_malignant_status_decision_source
15	weak	emt_mesenchymal		emt_mesenchymal	NA	False	0.0409949	0.0389451	no_status_evidence
0	weak	stress_ifn			NA	False	-0.0654694	-0.0654694	no_status_evidence
4	weak	emt_mesenchymal			NA	False	-0.0274896	-0.0261151	no_status_evidence
7	weak	stress_ifn			NA	False	-0.5051925	-0.4799328	no_status_evidence
14	weak	emt_mesenchymal			NA	False	-0.0492046	-0.0467443	no_status_evidence
8	weak	stress_ifn			NA	False	-0.8161420	-0.7753349	no_status_evidence
12	weak	emt_mesenchymal			NA	False	-0.0319754	-0.0303766	no_status_evidence
18	weak	emt_mesenchymal			NA	False	0.0087171	0.0082812	no_status_evidence
6	weak	emt_mesenchymal			NA	False	-0.0270342	-0.0256825	no_status_evidence
10	weak	stress_ifn			NA	False	-0.1527602	-0.1451222	no_status_evidence
2	strong	transformed_goblet_mucinous_like	transformed	goblet_mucinous_like	NA	True	0.5821276	0.6997872	status_core
19	strong	transformed_goblet_mucinous_like	transformed	goblet_mucinous_like	NA	True	0.6546867	0.7683152	status_core
3	strong	transformed_goblet_mucinous_like	transformed	goblet_mucinous_like	NA	True	0.5938934	0.6779053	status_core
16	weak	emt_mesenchymal		emt_mesenchymal	NA	False	-0.0444082	-0.0421878	no_status_evidence
22	weak	stress_ifn			NA	False	-0.2632725	-0.2501089	no_status_evidence
13	strong	transformed_wnt_stem_like	transformed	wnt_stem_like	NA	True	0.9729888	1.1229888	status_core
1	weak	emt_mesenchymal		emt_mesenchymal	NA	False	-0.0526289	-0.0499975	no_status_evidence
17	weak	cycling			NA	False	-0.0001114	-0.0001002	no_status_evidence
21	weak	stress_ifn			NA	False	-0.2025665	-0.1823099	no_status_evidence
9	weak	stress_ifn			NA	False	-0.0862266	-0.0862266	no_status_evidence
11	strong	transformed_goblet_mucinous_like	transformed	goblet_mucinous_like	NA	True	0.5433234	0.5027695	status_core
5	weak	goblet_mucinous_like		goblet_mucinous_like	NA	False	0.2783830	0.3319858	no_status_evidence
20	weak	stress_ifn			NA	False	-0.1445616	-0.1445616	no_status_evidence

Table 5: Example export labels in flag_only mode.

cluster_id	annot_export_label	annot_export_status	annot_label	annot_confidence	annot_malignant_status	annot_malignant_label_concise	annot_export_malignant_flag
15	Pericyte	resolved	Pericyte	high	weak	emt_mesenchymal	False
0	Fibroblast	resolved	Fibroblast	medium	weak	stress_ifn	False
4	Pericyte	resolved	Pericyte	high	weak	emt_mesenchymal	False
7	mixed_neutrophil.macrophage	mixed	Neutrophil	high	weak	stress_ifn	False
14	Fibroblast	resolved	Fibroblast	high	weak	emt_mesenchymal	False
8	Treg	resolved	Treg	high	weak	stress_ifn	False
12	Capillary endothelial	resolved	Capillary endothelial	high	weak	emt_mesenchymal	False
18	Pericyte	resolved	Pericyte	high	weak	emt_mesenchymal	False
6	Pericyte	resolved	Pericyte	high	weak	emt_mesenchymal	False
10	candidate_plasma_cell	candidate	Unresolved	none	weak	stress_ifn	False
2	Stem/TA-like	resolved	Stem/TA-like	high	strong	transformed_goblet_mucinous_like	True
19	Stem/TA-like	resolved	Stem/TA-like	high	strong	transformed_goblet_mucinous_like	True
3	Stem/TA-like	resolved	Stem/TA-like	high	strong	transformed_goblet_mucinous_like	True
16	Fibroblast	resolved	Fibroblast	high	weak	emt_mesenchymal	False
22	Mast cell	resolved	Mast cell	high	weak	stress_ifn	False
13	Absorptive-like	resolved	Absorptive-like	high	strong	transformed_wnt_stem_like	True
1	Fibroblast	resolved	Fibroblast	high	weak	emt_mesenchymal	False
17	unknown	unknown	Unresolved	none	weak	cycling	False
21	Plasma cell	resolved	Plasma cell	high	weak	stress_ifn	False
9	Fibroblast	resolved	Fibroblast	high	weak	stress_ifn	False
11	Absorptive-like	resolved	Absorptive-like	high	strong	transformed_goblet_mucinous_like	True
5	Goblet-like	resolved	Goblet-like	high	weak	goblet_mucinous_like	False
20	Neutrophil	resolved	Neutrophil	high	weak	stress_ifn	False

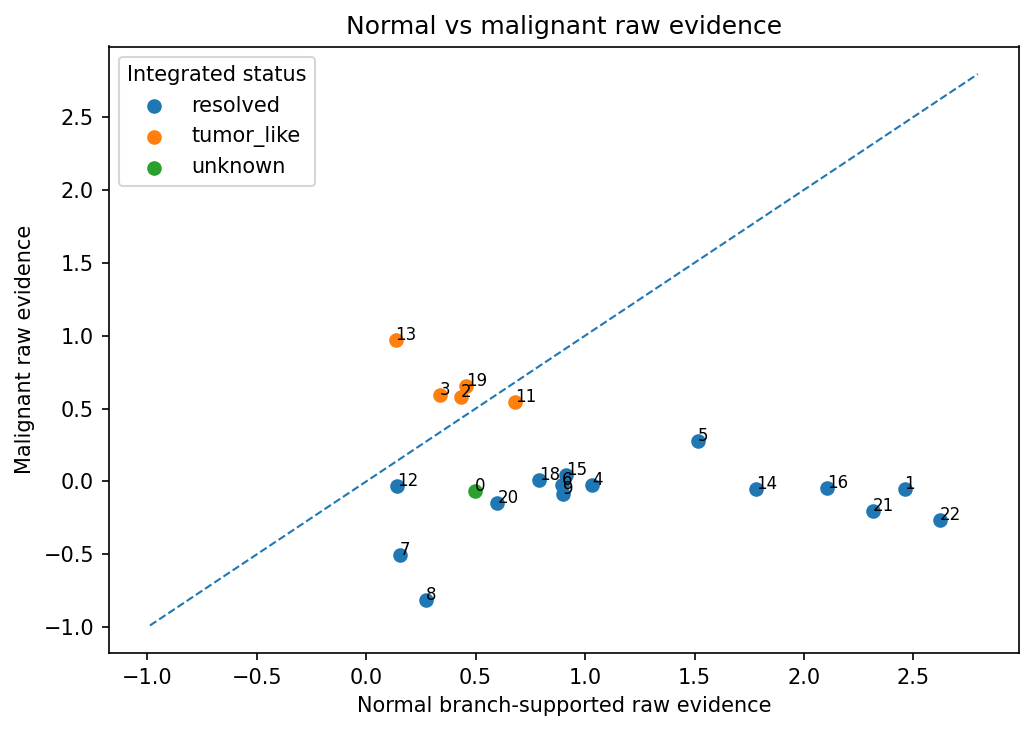

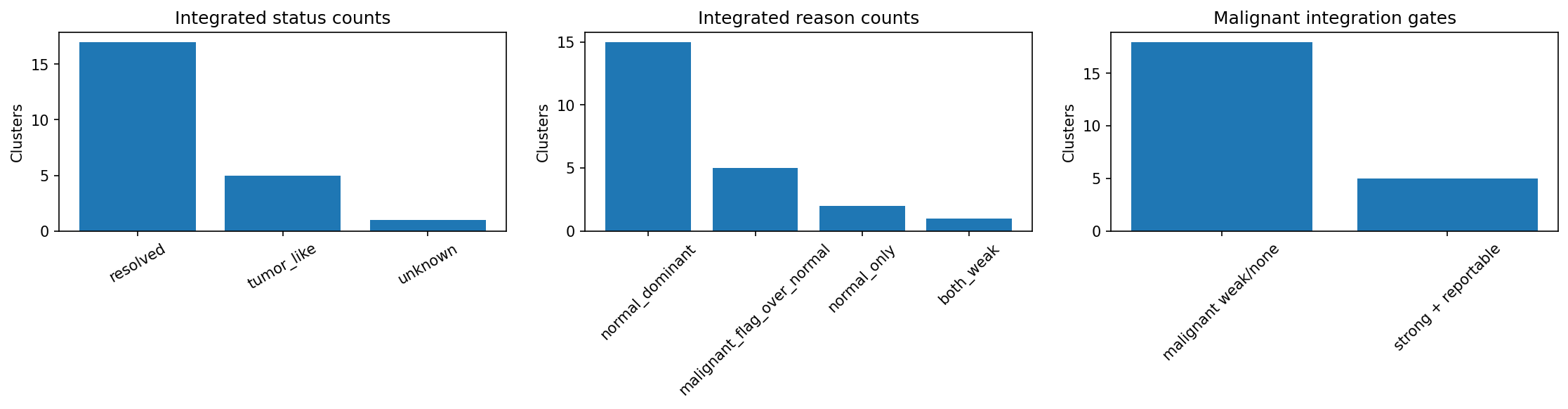

4.5 Workflow B: integrated tumor annotation

Integrated mode combines annotations from both tracks into integrated labels. Use it when the desired final label should explicitly include strong reportable tumor-like status.

pipeline_integrated = HierAnnotPipeline(
    root_programs=root_programs,
    malignant_programs=tumor_programs,
    malignant_integration_mode="integrate",
    program_report_block_preset="tumor_reportable",
)

result_integrated = pipeline_integrated.fit_score(cluster_means)

The integrated annotation table, result.integrated_annotations, combines normal identity with tumor-status interpretation.

Code

integrated_cols = [
    "cluster_id",
    "annot_integrated_label",
    "annot_integrated_status",
    "annot_integrated_reason",
    "annot_label",
    "annot_malignant_status",
    "annot_malignant_label_concise",
    "annot_malignant_tumor_status_pass",
    "annot_malignant_reporting_blocked",
    "annot_malignant_status_score",
    "annot_malignant_raw_score",
]

result_integrated.integrated_annotations[integrated_cols]

## To inspect clusters whose reporting was blocked by lineage/reporting rules
result_integrated.integrated_annotations.loc[
    result_integrated.integrated_annotations["annot_malignant_reporting_blocked"],
    integrated_cols,
]

Resolved normal labels with strong reportable tumor-status evidence can become integrated labels such as:

tumor_like_transformed.Intestinal epithelial
tumor_like_transformed_emt_mesenchymal.Absorptive-like

Normal-track safeguards are still respected in the export stage. For example, mixed_* or candidate_* labels can remain primary when they carry important normal-hierarchy uncertainty.

The export summary gives a concise table that can be joined back to adata.obs.

export_integrated = make_cluster_annotation_export_summary(result_integrated)

Code

expr_cols2 = [
    "cluster_id",

    # final export label
    "annot_export_label",
    "annot_export_status",

    # normal hierarchy outcomes
    "annot_label",
    "annot_confidence",

    # malignant flagging outcomes
    "annot_malignant_status",
    "annot_malignant_label_concise",
    "annot_export_malignant_flag",

    # integrated label before applying other export rules
    "annot_integrated_label",
    "annot_integrated_status",
]

export_integrated[expr_cols2]

Attach the final export label back to the original AnnData object:

final_col = "annot_export_label" # or "annot_export_label_with_cluster"

label_map = export_integrated.set_index("cluster_id")[final_col]
adata.obs["hierannot_label"] = (
    adata.obs[cluster_key]
    .astype(label_map.index.dtype)
    .map(label_map)
    .fillna("unassigned")
)

# attach the tumor-like flag separately
tumor_flag_map = export_integrated.set_index("cluster_id")["annot_export_malignant_flag"]
adata.obs["hierannot_tumor_like"] = (
    adata.obs[cluster_key]
    .astype(tumor_flag_map.index.dtype)
    .map(tumor_flag_map)
    .fillna(False)
)

Export precedence with mixed, candidate, and unknown normal labels

In integration mode, the tumor/auxiliary track does not simply overwrite every normal hierarchy label.

The default export behavior is:

resolved normal label + reportable tumor-like evidence
    -> use integrated tumor_like_* label

mixed_* normal label + reportable tumor-like evidence
    -> keep mixed_* label as primary
    -> store tumor-like label as diagnostic

candidate_* normal label + reportable tumor-like evidence
    -> keep candidate_* label as primary
    -> store tumor-like label as diagnostic

unknown normal label + reportable tumor-like evidence
    -> use tumor_like_*.unknown if tumor status is reportable

This is designed for sparse spatial data, where normal hierarchy safeguards such as mixed labels and candidate rescue often carry useful information.

integrated_annotations
Export labels in integrate mode

Table 6: Example integrated_annotations results.

cluster_id	annot_integrated_label	annot_integrated_status	annot_integrated_reason	annot_label	annot_malignant_status	annot_malignant_label_concise	annot_malignant_tumor_status_pass	annot_malignant_reporting_blocked	annot_malignant_status_score	annot_malignant_raw_score
15	Pericyte	resolved	normal_dominant	Pericyte	weak	emt_mesenchymal	False	False	0.0389451	0.0409949
0	unknown	unknown	both_weak	Fibroblast	weak	stress_ifn	False	False	-0.0654694	-0.0654694
4	Pericyte	resolved	normal_dominant	Pericyte	weak	emt_mesenchymal	False	False	-0.0261151	-0.0274896
7	Neutrophil	resolved	normal_dominant	Neutrophil	weak	stress_ifn	False	False	-0.4799328	-0.5051925
14	Fibroblast	resolved	normal_dominant	Fibroblast	weak	emt_mesenchymal	False	False	-0.0467443	-0.0492046
8	Treg	resolved	normal_dominant	Treg	weak	stress_ifn	False	False	-0.7753349	-0.8161420
12	Capillary endothelial	resolved	normal_dominant	Capillary endothelial	weak	emt_mesenchymal	False	False	-0.0303766	-0.0319754
18	Pericyte	resolved	normal_dominant	Pericyte	weak	emt_mesenchymal	False	False	0.0082812	0.0087171
6	Pericyte	resolved	normal_dominant	Pericyte	weak	emt_mesenchymal	False	False	-0.0256825	-0.0270342
10	Unresolved	resolved	normal_only	Unresolved	weak	stress_ifn	False	False	-0.1451222	-0.1527602
2	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like	malignant_flag_over_normal	Stem/TA-like	strong	transformed_goblet_mucinous_like	True	False	0.6997872	0.5821276
19	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like	malignant_flag_over_normal	Stem/TA-like	strong	transformed_goblet_mucinous_like	True	False	0.7683152	0.6546867
3	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like	malignant_flag_over_normal	Stem/TA-like	strong	transformed_goblet_mucinous_like	True	False	0.6779053	0.5938934
16	Fibroblast	resolved	normal_dominant	Fibroblast	weak	emt_mesenchymal	False	False	-0.0421878	-0.0444082
22	Mast cell	resolved	normal_dominant	Mast cell	weak	stress_ifn	False	False	-0.2501089	-0.2632725
13	tumor_like_transformed_wnt_stem_like.Absorptive-like	tumor_like	malignant_flag_over_normal	Absorptive-like	strong	transformed_wnt_stem_like	True	False	1.1229888	0.9729888
1	Fibroblast	resolved	normal_dominant	Fibroblast	weak	emt_mesenchymal	False	False	-0.0499975	-0.0526289
17	Unresolved	resolved	normal_only	Unresolved	weak	cycling	False	False	-0.0001002	-0.0001114
21	Plasma cell	resolved	normal_dominant	Plasma cell	weak	stress_ifn	False	False	-0.1823099	-0.2025665
9	Fibroblast	resolved	normal_dominant	Fibroblast	weak	stress_ifn	False	False	-0.0862266	-0.0862266
11	tumor_like_transformed_goblet_mucinous_like.Absorptive-like	tumor_like	malignant_flag_over_normal	Absorptive-like	strong	transformed_goblet_mucinous_like	True	False	0.5027695	0.5433234
5	Goblet-like	resolved	normal_dominant	Goblet-like	weak	goblet_mucinous_like	False	False	0.3319858	0.2783830
20	Neutrophil	resolved	normal_dominant	Neutrophil	weak	stress_ifn	False	False	-0.1445616	-0.1445616

Table 7: Example export labels in integrate mode.

cluster_id	annot_export_label	annot_export_status	annot_label	annot_confidence	annot_malignant_status	annot_malignant_label_concise	annot_export_malignant_flag	annot_integrated_label	annot_integrated_status
15	Pericyte	resolved	Pericyte	high	weak	emt_mesenchymal	False	Pericyte	resolved
0	Fibroblast	resolved	Fibroblast	medium	weak	stress_ifn	False	unknown	unknown
4	Pericyte	resolved	Pericyte	high	weak	emt_mesenchymal	False	Pericyte	resolved
7	mixed_neutrophil.macrophage	mixed	Neutrophil	high	weak	stress_ifn	False	Neutrophil	resolved
14	Fibroblast	resolved	Fibroblast	high	weak	emt_mesenchymal	False	Fibroblast	resolved
8	Treg	resolved	Treg	high	weak	stress_ifn	False	Treg	resolved
12	Capillary endothelial	resolved	Capillary endothelial	high	weak	emt_mesenchymal	False	Capillary endothelial	resolved
18	Pericyte	resolved	Pericyte	high	weak	emt_mesenchymal	False	Pericyte	resolved
6	Pericyte	resolved	Pericyte	high	weak	emt_mesenchymal	False	Pericyte	resolved
10	candidate_plasma_cell	candidate	Unresolved	none	weak	stress_ifn	False	Unresolved	resolved
2	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like	Stem/TA-like	high	strong	transformed_goblet_mucinous_like	True	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like
19	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like	Stem/TA-like	high	strong	transformed_goblet_mucinous_like	True	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like
3	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like	Stem/TA-like	high	strong	transformed_goblet_mucinous_like	True	tumor_like_transformed_goblet_mucinous_like.Stem/TA-like	tumor_like
16	Fibroblast	resolved	Fibroblast	high	weak	emt_mesenchymal	False	Fibroblast	resolved
22	Mast cell	resolved	Mast cell	high	weak	stress_ifn	False	Mast cell	resolved
13	tumor_like_transformed_wnt_stem_like.Absorptive-like	tumor_like	Absorptive-like	high	strong	transformed_wnt_stem_like	True	tumor_like_transformed_wnt_stem_like.Absorptive-like	tumor_like
1	Fibroblast	resolved	Fibroblast	high	weak	emt_mesenchymal	False	Fibroblast	resolved
17	unknown	unknown	Unresolved	none	weak	cycling	False	Unresolved	resolved
21	Plasma cell	resolved	Plasma cell	high	weak	stress_ifn	False	Plasma cell	resolved
9	Fibroblast	resolved	Fibroblast	high	weak	stress_ifn	False	Fibroblast	resolved
11	tumor_like_transformed_goblet_mucinous_like.Absorptive-like	tumor_like	Absorptive-like	high	strong	transformed_goblet_mucinous_like	True	tumor_like_transformed_goblet_mucinous_like.Absorptive-like	tumor_like
5	Goblet-like	resolved	Goblet-like	high	weak	goblet_mucinous_like	False	Goblet-like	resolved
20	Neutrophil	resolved	Neutrophil	high	weak	stress_ifn	False	Neutrophil	resolved

4.5.1 Diagnostic plots

HierAnnot includes plotting helpers for various diagnostic checks. See README and examples subfolder of the package for a complete list of all available diagnostic plots.

from hierannot import (
    plot_malignant_score_heatmap,
    plot_malignant_status_scatter,
)

# same plot functions for `result_flag` and `result_integrated`

# Heatmap of malignant score shows which programs are active across clusters
plot_malignant_score_heatmap(result_flag)

# Scatter plot summarizes raw tumor-status evidence against combined status evidence
# and helps identify strong, weak, and borderline calls.
plot_malignant_status_scatter(result_flag)

Malignant score heatmap
Scatter plot of malignant status evidence

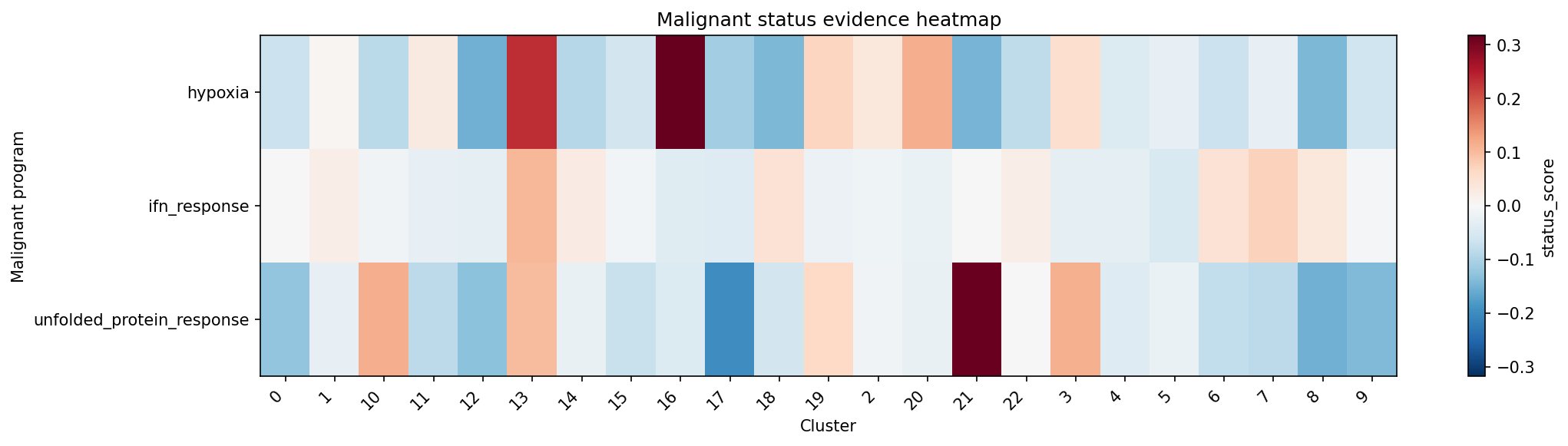

heatmap of tumor-program status scores across clusters. — Figure 2: Heatmap of tumor-program status scores across clusters.

Figure 3: Scatter plot of malignant raw score vs combined status score, colored by malignant status.

In integrated mode, the most useful diagnostic plots focus on how the tumor/auxiliary track interacts with the normal hierarchy track.

from hierannot import (
    plot_integration_summary,
    plot_integration_raw_evidence,
)

# Summary bar plot for integrated annotation results
plot_integration_summary(result_integrated)

# Scatter plot of normal raw evidence against malignant raw evidence
plot_integration_raw_evidence(result_integrated)

Integration summary bar plot
Normal vs. maligant raw evidence

Figure 4: Summary bar plot showing integrated status counts, integration reasons, and blocked/reportable tumor calls.

Figure 5: Raw-evidence scatter plot showing normal hierarchy evidence versus tumor-status evidence.

These plots are useful for quickly seeing whether tumor-like integration is behaving as expected: which clusters were integrated, which were blocked, and whether tumor-status evidence is clearly separated from normal hierarchy evidence.

4.5.2 Canonical marker sanity checks

HierAnnot provides a helper to collect positive marker genes from built-in hierarchies and marker program sets.

from hierannot import collect_positive_marker_genes

# get all marker genes as a list
pos_mrk_genes = collect_positive_marker_genes(
    hierarchy="colon_tme",
    # built-in hierarchy name or actual hierarchy `root_programs`

    program_sets=["tumor_colon", "stress"],
    # built-in program set names

    ## or pass in the actual list of flat marker programs
    # programs = tumor_programs
)

heatmap_genes = [g for g in pos_mrk_genes if g in adata.var_names]

# you can use these markers to make a heatmap across clusters
import scanpy as sc
sc.pl.matrixplot(adata, heatmap_genes, groupby=cluster_key)

To keep track of where each gene came from what sources:

marker_table = collect_positive_marker_genes(
    hierarchy="colon_tme",
    program_sets=["tumor_colon", "stress"],
    return_format="dataframe", # default: "list"
)

marker_table.head()

Table 8: Marker table for colon_tme hierarchy and built-in marker program sets for tumor_colon and stress.

source	program	program_type	marker
hierarchy:colon_tme	Intestinal epithelial	hierarchy	KRT20
hierarchy:colon_tme	Intestinal epithelial	hierarchy	CEACAM1
hierarchy:colon_tme	Intestinal epithelial	hierarchy	SLC26A3
hierarchy:colon_tme	Intestinal epithelial	hierarchy	MUC2
hierarchy:colon_tme	Intestinal epithelial	hierarchy	TFF3
hierarchy:colon_tme	Intestinal epithelial	hierarchy	SOX9
hierarchy:colon_tme	Absorptive-like	hierarchy	CA1
hierarchy:colon_tme	Absorptive-like	hierarchy	FABP1
hierarchy:colon_tme	Goblet-like	hierarchy	SPINK4
hierarchy:colon_tme	Goblet-like	hierarchy	CLCA1
hierarchy:colon_tme	Goblet-like	hierarchy	AGR2
hierarchy:colon_tme	Stem/TA-like	hierarchy	LGR5
hierarchy:colon_tme	Stem/TA-like	hierarchy	OLFM4
hierarchy:colon_tme	Stem/TA-like	hierarchy	MKI67
hierarchy:colon_tme	Stem/TA-like	hierarchy	ASCL2
hierarchy:colon_tme	Fibroblast	hierarchy	COL1A1
hierarchy:colon_tme	Fibroblast	hierarchy	COL1A2
hierarchy:colon_tme	Fibroblast	hierarchy	DCN
hierarchy:colon_tme	Fibroblast	hierarchy	LUM
hierarchy:colon_tme	Fibroblast	hierarchy	COL3A1
hierarchy:colon_tme	Endothelial	hierarchy	PECAM1
hierarchy:colon_tme	Endothelial	hierarchy	VWF
hierarchy:colon_tme	Endothelial	hierarchy	EMCN
hierarchy:colon_tme	Endothelial	hierarchy	KDR
hierarchy:colon_tme	Endothelial	hierarchy	CLDN5
hierarchy:colon_tme	Capillary endothelial	hierarchy	RGCC
hierarchy:colon_tme	Capillary endothelial	hierarchy	CA4
hierarchy:colon_tme	Mural	hierarchy	RGS5
hierarchy:colon_tme	Mural	hierarchy	MCAM
hierarchy:colon_tme	Mural	hierarchy	CSPG4
hierarchy:colon_tme	Mural	hierarchy	ACTA2
hierarchy:colon_tme	Mural	hierarchy	MYH11
hierarchy:colon_tme	Pericyte	hierarchy	PDGFRB
hierarchy:colon_tme	Pericyte	hierarchy	DES
hierarchy:colon_tme	Immune	hierarchy	PTPRC
hierarchy:colon_tme	Immune	hierarchy	TYROBP
hierarchy:colon_tme	Immune	hierarchy	LST1
hierarchy:colon_tme	Immune	hierarchy	HLA-DRA
hierarchy:colon_tme	Immune	hierarchy	CD53
hierarchy:colon_tme	T cell	hierarchy	CD3D
hierarchy:colon_tme	T cell	hierarchy	CD3E
hierarchy:colon_tme	T cell	hierarchy	TRBC1
hierarchy:colon_tme	T cell	hierarchy	TRAC
hierarchy:colon_tme	T cell	hierarchy	LTB
hierarchy:colon_tme	CD4 T cell	hierarchy	IL7R
hierarchy:colon_tme	CD4 T cell	hierarchy	MAL
hierarchy:colon_tme	CD8 T cell	hierarchy	NKG7
hierarchy:colon_tme	CD8 T cell	hierarchy	CCL5
hierarchy:colon_tme	CD8 T cell	hierarchy	PRF1
hierarchy:colon_tme	CD8 T cell	hierarchy	GZMB
hierarchy:colon_tme	Treg	hierarchy	IL2RA
hierarchy:colon_tme	Treg	hierarchy	FOXP3
hierarchy:colon_tme	Treg	hierarchy	TIGIT
hierarchy:colon_tme	Treg	hierarchy	CTLA4
hierarchy:colon_tme	B cell	hierarchy	MS4A1
hierarchy:colon_tme	B cell	hierarchy	CD79A
hierarchy:colon_tme	B cell	hierarchy	CD74
hierarchy:colon_tme	B cell	hierarchy	CD79B
hierarchy:colon_tme	Plasma cell	hierarchy	MZB1
hierarchy:colon_tme	Plasma cell	hierarchy	JCHAIN
hierarchy:colon_tme	Plasma cell	hierarchy	SDC1
hierarchy:colon_tme	Plasma cell	hierarchy	XBP1
hierarchy:colon_tme	Plasma cell	hierarchy	IGKC
hierarchy:colon_tme	NK cell	hierarchy	KLRD1
hierarchy:colon_tme	NK cell	hierarchy	GNLY
hierarchy:colon_tme	NK cell	hierarchy	FCGR3A
hierarchy:colon_tme	Myeloid	hierarchy	LYZ
hierarchy:colon_tme	Myeloid	hierarchy	TYMP
hierarchy:colon_tme	Myeloid	hierarchy	FCER1G
hierarchy:colon_tme	Myeloid	hierarchy	CTSS
hierarchy:colon_tme	Myeloid	hierarchy	SAT1
hierarchy:colon_tme	Macrophage	hierarchy	C1QA
hierarchy:colon_tme	Macrophage	hierarchy	C1QB
hierarchy:colon_tme	Macrophage	hierarchy	APOE
hierarchy:colon_tme	Monocyte	hierarchy	S100A8
hierarchy:colon_tme	Monocyte	hierarchy	S100A9
hierarchy:colon_tme	Monocyte	hierarchy	FCN1
hierarchy:colon_tme	Dendritic cell	hierarchy	FCER1A
hierarchy:colon_tme	Dendritic cell	hierarchy	CST3
hierarchy:colon_tme	Dendritic cell	hierarchy	CLEC10A
hierarchy:colon_tme	Mast cell	hierarchy	TPSAB1
hierarchy:colon_tme	Mast cell	hierarchy	TPSB2
hierarchy:colon_tme	Mast cell	hierarchy	KIT
hierarchy:colon_tme	Mast cell	hierarchy	CPA3
hierarchy:colon_tme	Mast cell	hierarchy	HDC
hierarchy:colon_tme	Neutrophil	hierarchy	FCGR3B
hierarchy:colon_tme	Neutrophil	hierarchy	CXCR2
hierarchy:colon_tme	Neutrophil	hierarchy	CSF3R
program_set:tumor_colon	core_transformation	flat_program	KRT17
program_set:tumor_colon	core_transformation	flat_program	TACSTD2
program_set:tumor_colon	core_transformation	flat_program	CLDN4
program_set:tumor_colon	core_transformation	flat_program	MSLN
program_set:tumor_colon	core_transformation	flat_program	S100A14
program_set:tumor_colon	core_transformation	flat_program	LCN2
program_set:tumor_colon	core_transformation	flat_program	CEACAM5
program_set:tumor_colon	core_transformation	flat_program	PROM1
program_set:tumor_colon	epithelial_tumor_stress	flat_program	KRT6A
program_set:tumor_colon	epithelial_tumor_stress	flat_program	KRT6B
program_set:tumor_colon	epithelial_tumor_stress	flat_program	SERPINB3
program_set:tumor_colon	epithelial_tumor_stress	flat_program	SERPINB4
program_set:tumor_colon	epithelial_tumor_stress	flat_program	MMP7
program_set:tumor_colon	stemlike_transformation	flat_program	CD44
program_set:tumor_colon	stemlike_transformation	flat_program	ALCAM
program_set:tumor_colon	stemlike_transformation	flat_program	MSI1
program_set:tumor_colon	stemlike_transformation	flat_program	SMOC2
program_set:tumor_colon	stemlike_transformation	flat_program	MYC
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	VIM
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	FN1
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	ITGA5
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	ITGB1
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	ITGA6
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	ZEB1
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	ZEB2
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	SNAI1
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	SNAI2
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	TWIST1
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	LAMB3
program_set:tumor_colon	emt_mesenchymal_transition	flat_program	MMP14
program_set:tumor_colon	cycling	flat_program	TOP2A
program_set:tumor_colon	cycling	flat_program	UBE2C
program_set:tumor_colon	cycling	flat_program	PCNA
program_set:tumor_colon	cycling	flat_program	TYMS
program_set:tumor_colon	cycling	flat_program	BIRC5
program_set:tumor_colon	stress_ifn	flat_program	STAT1
program_set:tumor_colon	stress_ifn	flat_program	ISG15
program_set:tumor_colon	stress_ifn	flat_program	IFIT1
program_set:tumor_colon	stress_ifn	flat_program	IFIT3
program_set:tumor_colon	stress_ifn	flat_program	MX1
program_set:tumor_colon	stress_ifn	flat_program	OAS1
program_set:tumor_colon	wnt_stem_like	flat_program	AXIN2
program_set:stress	hypoxia	flat_program	CA9
program_set:stress	hypoxia	flat_program	VEGFA
program_set:stress	hypoxia	flat_program	SLC2A1
program_set:stress	hypoxia	flat_program	LDHA
program_set:stress	hypoxia	flat_program	PGK1
program_set:stress	hypoxia	flat_program	ENO1
program_set:stress	ifn_response	flat_program	IRF7
program_set:stress	unfolded_protein_response	flat_program	HSPA5
program_set:stress	unfolded_protein_response	flat_program	DDIT3
program_set:stress	unfolded_protein_response	flat_program	ATF3
program_set:stress	unfolded_protein_response	flat_program	ATF4

4.6 Non-tumor auxiliary program example

The same flat program track can be used for non-tumor programs. In that case, use flag_only mode so that auxiliary program status does not change the final export label.

For example, to score stress programs:

stress_programs = get_builtin_marker_program_set("stress")

pipeline_stress = HierAnnotPipeline(
    root_programs=root_programs,
    malignant_programs=stress_programs,
    malignant_integration_mode="flag_only",
    program_report_block_preset="off",
)

result_stress = pipeline_stress.fit_score(cluster_means)

# To inspect auxiliary annotation
result_stress.malignant_annotations[
    [
        "cluster_id",
        "annot_malignant_status",
        "annot_malignant_label_concise",
        "annot_malignant_modifier_labels",
        "annot_malignant_strong_programs",
    ]
]

# score heatmap
plot_malignant_score_heatmap(result_stress)

Here, annot_malignant_label_concise should be interpreted as the selected auxiliary program label, such as hypoxia, not necessarily a malignant tumor label.

5 Conclusion

The tumor/auxiliary program track extends HierAnnot from lineage annotation to multi-state annotation.

The normal hierarchy track answers:

What is this cluster’s best-supported normal identity?

The tumor/auxiliary program track answers:

Which tumor-like, state, modifier, or auxiliary marker programs are active?

For malignant annotation, the combined tumor-status score aggregates evidence across status programs, allows gated support from state programs, and keeps modifiers as diagnostic context. This lets HierAnnot report tumor-like labels when appropriate without treating every active biological program as a new cell identity. For non-tumor auxiliary programs, flag_only mode provides the same program-status summary while keeping final export labels anchored to the normal hierarchy.

Together, this two-track design provides a compact final annotation while preserving the evidence needed to understand, audit, and extend the result.
